Surge Bin, IMS Heavy Duty 29 cu ft, 1008 lb 80% Capacity @ 36lb/cu ft with 45 Degree Slope
Item #
144001
$3,227.00
/ EACH

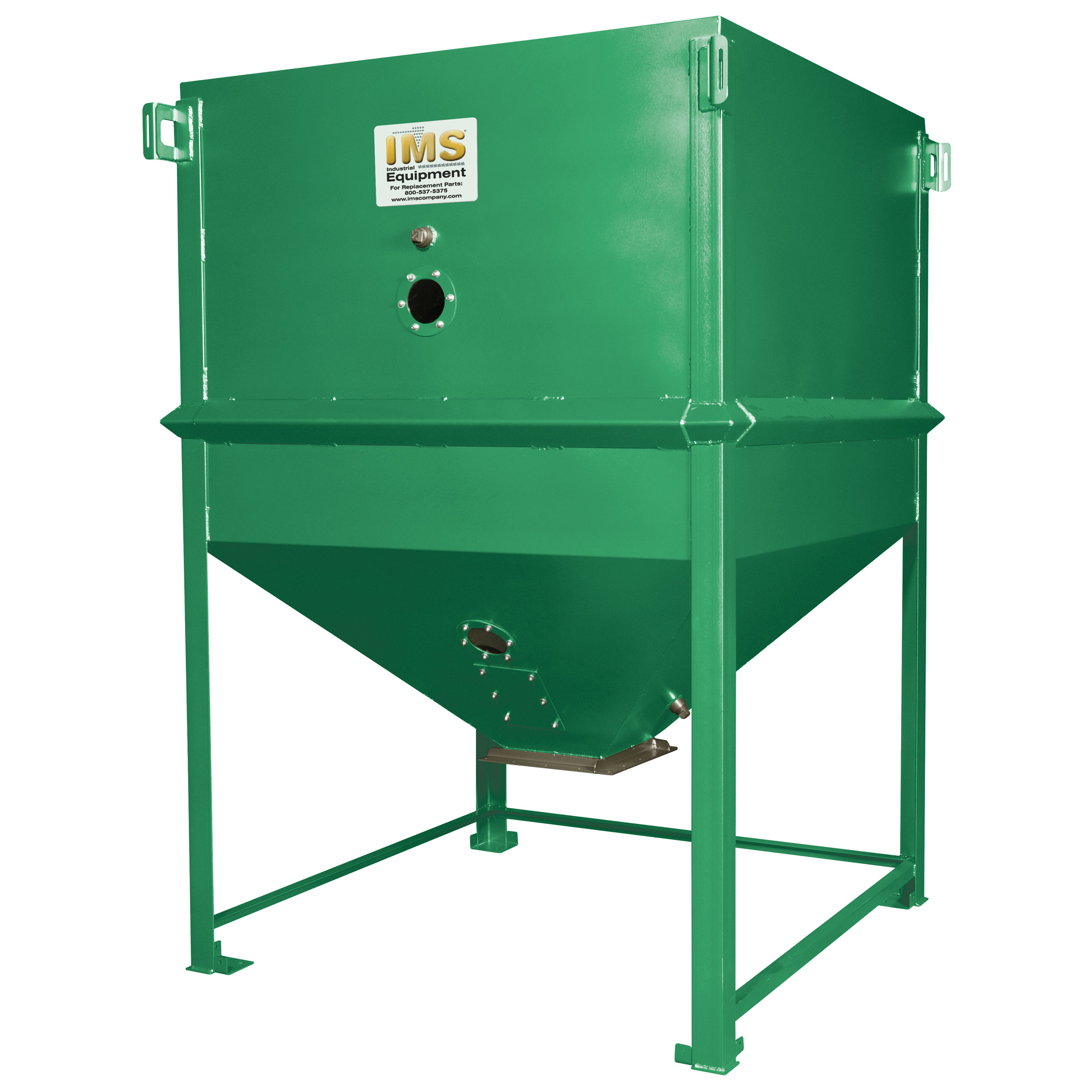

Surge Bin, IMS Heavy Duty 514 cu ft, 14, 392 lb 80% @ 35lb/cu ft with 45 Degree Slope
Item #
144026
Item is returnable
$23,046.00
/ EACH
Surge Bin, IMS Heavy Duty 514 cu ft, 14, 392 lb 80% @ 35lb/cu ft with 45 Degree Slope, and Lid with Access Door and Loader Pattern. ***** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details ****
Item Features
- Dimensions: 84" x 84" x 172" Tall
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Weight: 3,245 lb
- Option: 304 Stainless and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
Item Documents
- Item Catalog Page 626
-
-
Surge Bin, IMS Heavy Duty 58 Cu ft, 1624 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144003$3,966.00 / EACH -
Surge Bin, IMS Heavy Duty 69 Cu ft, 2408 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144005$5,004.00 / EACH -
Vacuum/Air Take Off Box with Four 1.5″ Ports
Item # 142712$395.65 / EACH -
$5,872.00 / EACH -
Surge Bin, IMS Heavy Duty 400 Cu ft, 11200 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144023$15,156.00 / EACH -
Surge Bin, IMS Heavy Duty 30 Cu ft, 1008 lb 80% Capacity @ 36lb/cu ft with 60 Degree Slope
Item # 144002$3,232.00 / EACH -
Surge Bin, IMS Heavy Duty 172 Cu ft, 4816 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144011$8,539.00 / EACH -
Indicator Panel for IMS Heavy Duty Surge Bin
Item # 142711$879.00 / EACH -
$17,075.00 / EACH -
Surge Bin, IMS Heavy Duty 145 Cu ft, 4060 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144009$6,868.00 / EACH -
Surge Bin, IMS Heavy Duty 114 Cu ft, 3192 lb 80% Capacity @ 35lb/cu ft with 60 Degree Slope
Item # 144007$5,777.00 / EACH
