Surge Bin, IMS Heavy Duty 400 cu ft, 11,200 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item #
144022
$15,122.00
/ EACH

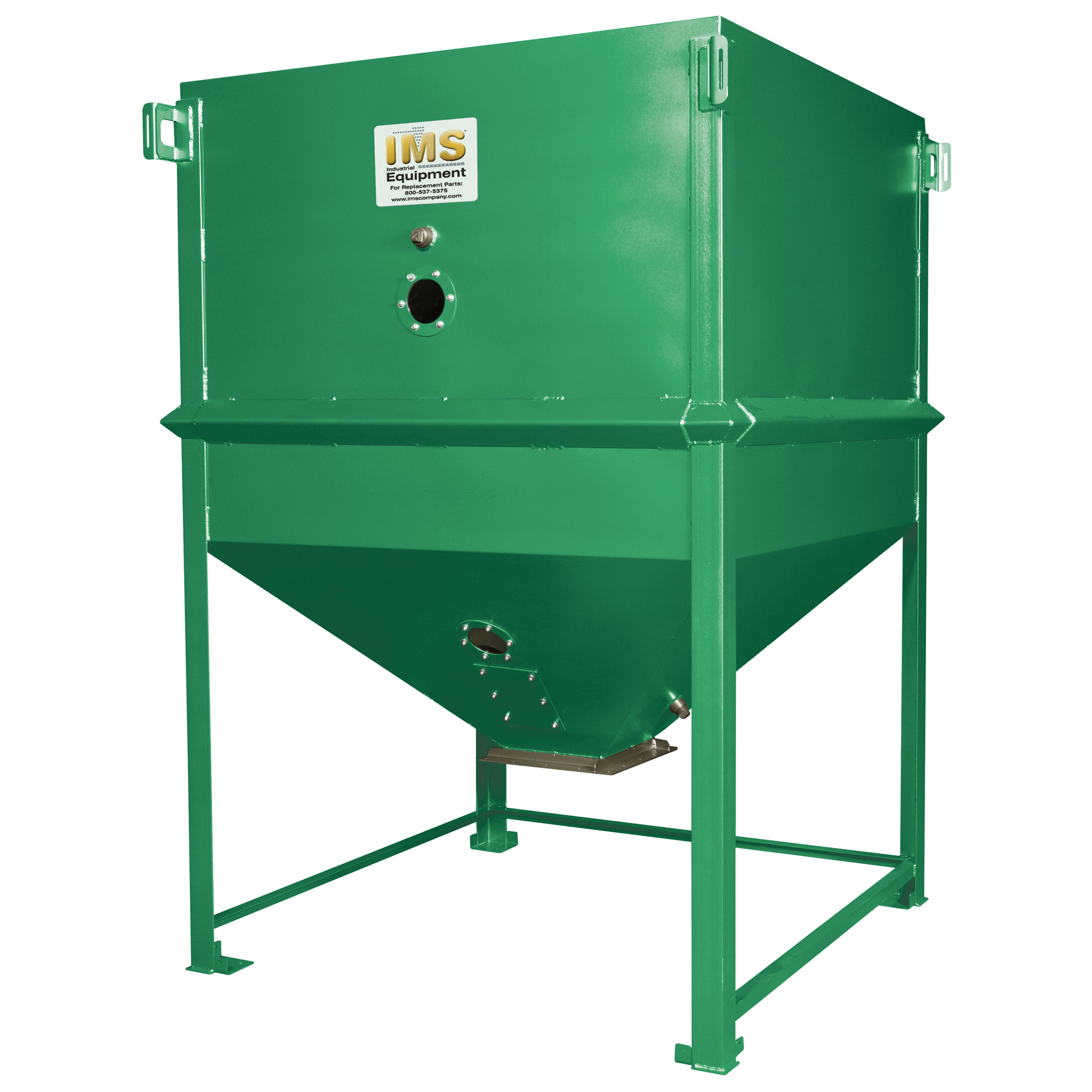

Surge Bin, IMS Heavy Duty 457 cu ft, 12,796 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item #
144025
Item is returnable
$17,173.00
/ EACH
Surge Bin, IMS Heavy Duty 457 cu ft, 12,796 lb 80% Capacity at 35lb/cu ft with 60° Slope and Lid with Access Door and Loader Pattern. ***** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details ****
Item Features
- Dimensions: 84" x 84" x 174"
- Weight: 3,200 lb
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Option: 304 Stainless and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
Item Documents
- Item Catalog Page 626
-
-
Surge Bin, IMS Heavy Duty 58 cu ft, 1,624 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144003$3,966.00 / EACH -
Indicator Panel for IMS Heavy Duty Surge Bin
Item # 142711$1,089.00 / EACH -
Surge Bin, IMS Heavy Duty 572 cu ft, 16,016 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144029$25,095.00 / EACH -
Surge Bin, IMS Heavy Duty 228 cu ft, 6,384 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144014$9,931.00 / EACH -
Surge Bin, IMS Heavy Duty 114 cu ft, 3,192 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144006$5,872.00 / EACH -
Surge Bin, IMS Heavy Duty 145 cu ft, 4,060 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144008$6,780.00 / EACH -
Surge Bin, IMS Heavy Duty 400 cu ft, 11,200 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144023$15,156.00 / EACH -
Surge Bin, IMS Heavy Duty 172 cu ft, 4,816 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144011$8,539.00 / EACH -
Surge Bin, IMS Heavy Duty 69 cu ft, 2,408 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144005$5,004.00 / EACH -
Surge Bin, IMS Heavy Duty 30 cu ft, 1,008 lb 80% Capacity at 36lb/cu ft with 60° Slope
Item # 144002$3,323.00 / EACH -
Surge Bin, IMS Heavy Duty 257 cu ft, 7,196 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144017$11,132.00 / EACH
