Surge Bin, IMS Heavy Duty 457 cu ft, 12,796 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item #
144024
$17,075.00
/ EACH

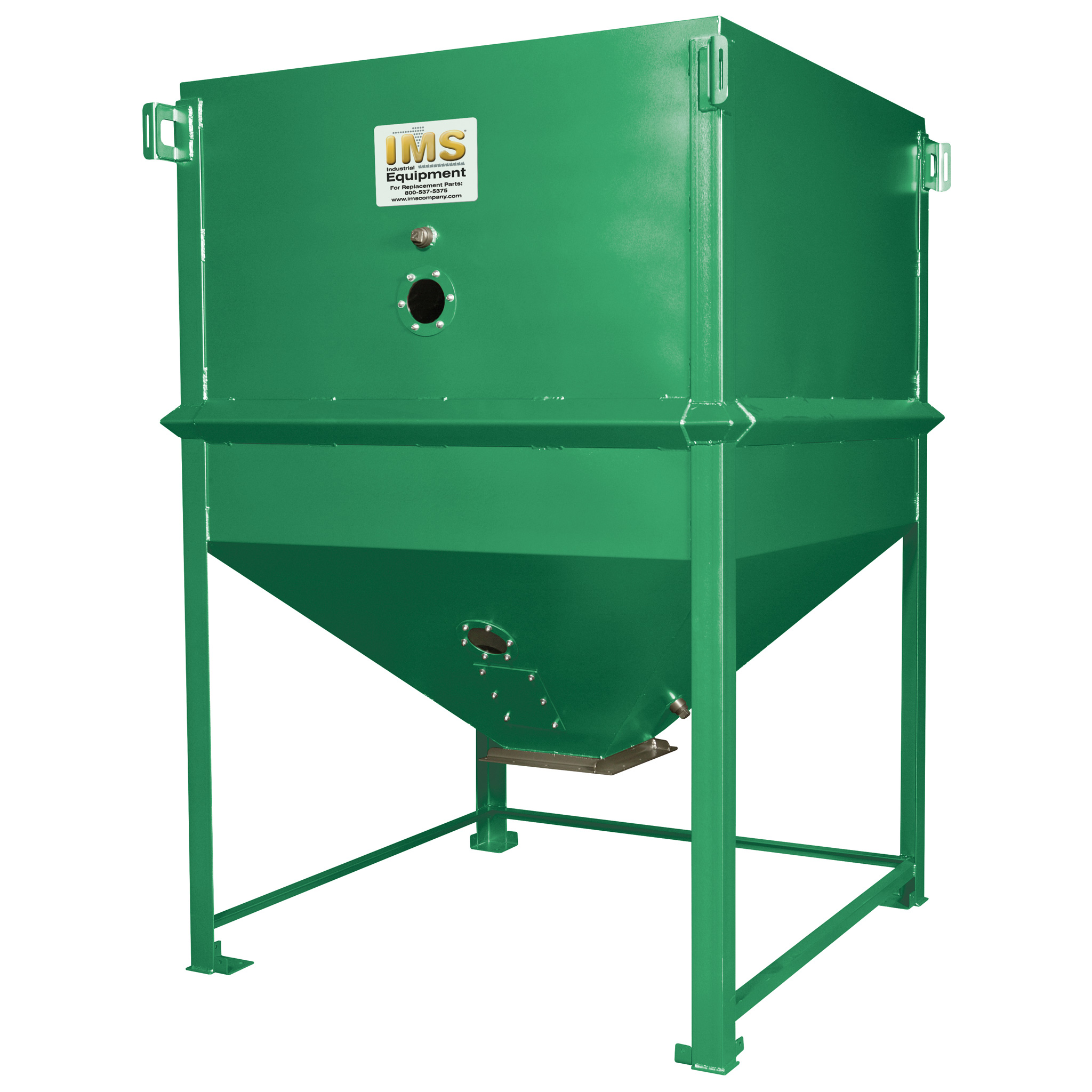

Surge Bin, IMS Heavy Duty 172 cu ft, 4,816 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item #
144011
Item is returnable
$8,539.00
/ EACH
Surge Bin, IMS Heavy Duty 172 cu ft, 4,816 lb 80% Capacity at 35lb/cu ft with 60° Slope and Lid with Access Door and Loader Pattern. ***** Made to Your Specification ****** **** Bin is Incomplete Without the Addition of Discharge Components, Contact IMS for Details ****
- Dimensions: 72" x 72" x 112"
- Weight: 1,380 lb
- Lid Door: 12" x 14" Hinged
- Loader Pattern: Made to Order
- Material: Painted Carbon Steel
- Paint Spec: IMS Green
- Discharge: 12" Square
- Windows: One High and One Low
- Floor Clearance: 20"
- Lifting Lugs: Four Per Bin
- Option: 304 Stainless and Custom Paint
- Option: Leg Extensions and Platforms
- Option: High & Low Level Sensors
- Option: Various Discharge Styles/Sizes
- Capacity: 172 cu ft (4816 lb)
- Hopper Slope Angle: 60°
Item Documents
- Item Catalog Page 626
-
-
Heavy Duty Surge Bin Cover Option, 1/3 and 2/3 Split Top
Item # 143879$552.00 / EACH -
Surge Bin, IMS Heavy Duty 343 cu ft, 9,604 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144021$14,020.00 / EACH -
Surge Bin, IMS Heavy Duty 457 cu ft, 12,796 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144025$17,173.00 / EACH -
Surge Bin, IMS Heavy Duty 572 cu ft, 16,016 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144028$24,748.00 / EACH -
Surge Bin, IMS Heavy Duty 172 cu ft, 4,816 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144010$8,391.00 / EACH -
Surge Bin, IMS Heavy Duty 145 cu ft, 4,060 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144009$6,868.00 / EACH -
Surge Bin, IMS Heavy Duty 343 cu ft, 9,604 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144020$13,856.00 / EACH -
Surge Bin, IMS Heavy Duty 228 cu ft, 6,384 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144014$9,931.00 / EACH -
Surge Bin, IMS Heavy Duty 114 cu ft, 3,192 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144006$5,872.00 / EACH -
Surge Bin, IMS Heavy Duty 572 cu ft, 16,016 lb 80% Capacity at 35lb/cu ft with 60° Slope
Item # 144029$25,095.00 / EACH -
Surge Bin, IMS Heavy Duty 145 cu ft, 4,060 lb 80% Capacity at 35lb/cu ft with 45° Slope
Item # 144008$6,780.00 / EACH
