$9.65
/ EACH

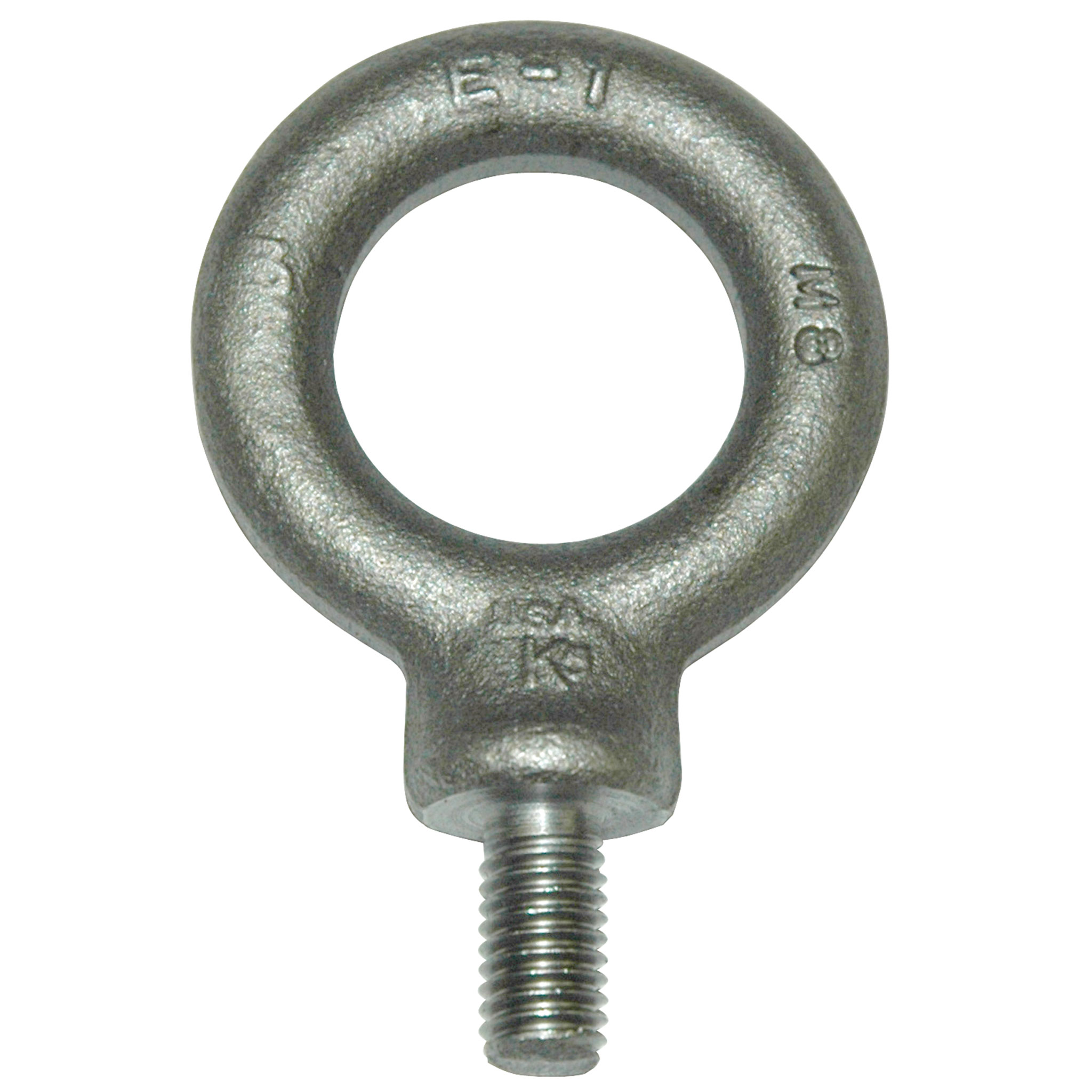

Eyebolt, 500 kg (1,102 lb.) Capacity, Metric, Shouldered, Forged Steel, M8 X 1.25 Thread Size
Item #
107516
Item is returnable
$10.20
/ EACH
Eyebolt, 500 kg (1,102 lb.) Capacity, Metric, Shouldered, Forged Steel, M8 x 1.25 Thread Size.
- 16 mm (0.63") Shank Length
- 25 mm (0.984") Eye Inside Diameter
- 43.0 mm (1.693") Eye OD
- 27.8 mm (1.094") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 500 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M8 x 1.25
Item Documents
- Item Catalog Page 27
- Item Catalog Page 27
-
-
$2.69 / EACH -
Eyebolt, 1,600 kg (3,527 lb.) Capacity, Metric, Shouldered, Forged Steel, M16 X 2.0 Thread Size
Item # 106724$17.20 / EACH -
$75.00 / EACH -
Eyebolt, 21,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 138829$48.70 / EACH -
$2.81 / EACH -
Eyebolt, 6,400 kg (14,080 lb.) Capacity, Metric, Shouldered, Forged Steel, M30 X 3.5 Thread Size
Item # 108500$63.30 / EACH -
$193.80 / EACH -
$5.20 / EACH -
Eyebolt, 500 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1/4″-20 Thread Size
Item # 142207$2.75 / EACH -
Eyebolt, 1,030 kg (2,270 lb.) Capacity, Metric, Shouldered, Forged Steel, M12 X 1.75 Thread Size
Item # 107520$11.40 / EACH -
$7.47 / EACH
