Eyebolt, 16,400 kg (36,155 lb.) Capacity, Metric, Shouldered, Forged Steel, M48x5.0 Thread Size
Item #
140636
$239.00
/ EACH
Eyebolt, 1,030 kg (2,270 lb.) Capacity, Metric, Shouldered, Forged Steel, M12x1.75 Thread Size
Item #
107520
Item is returnable
$11.40
/ EACH

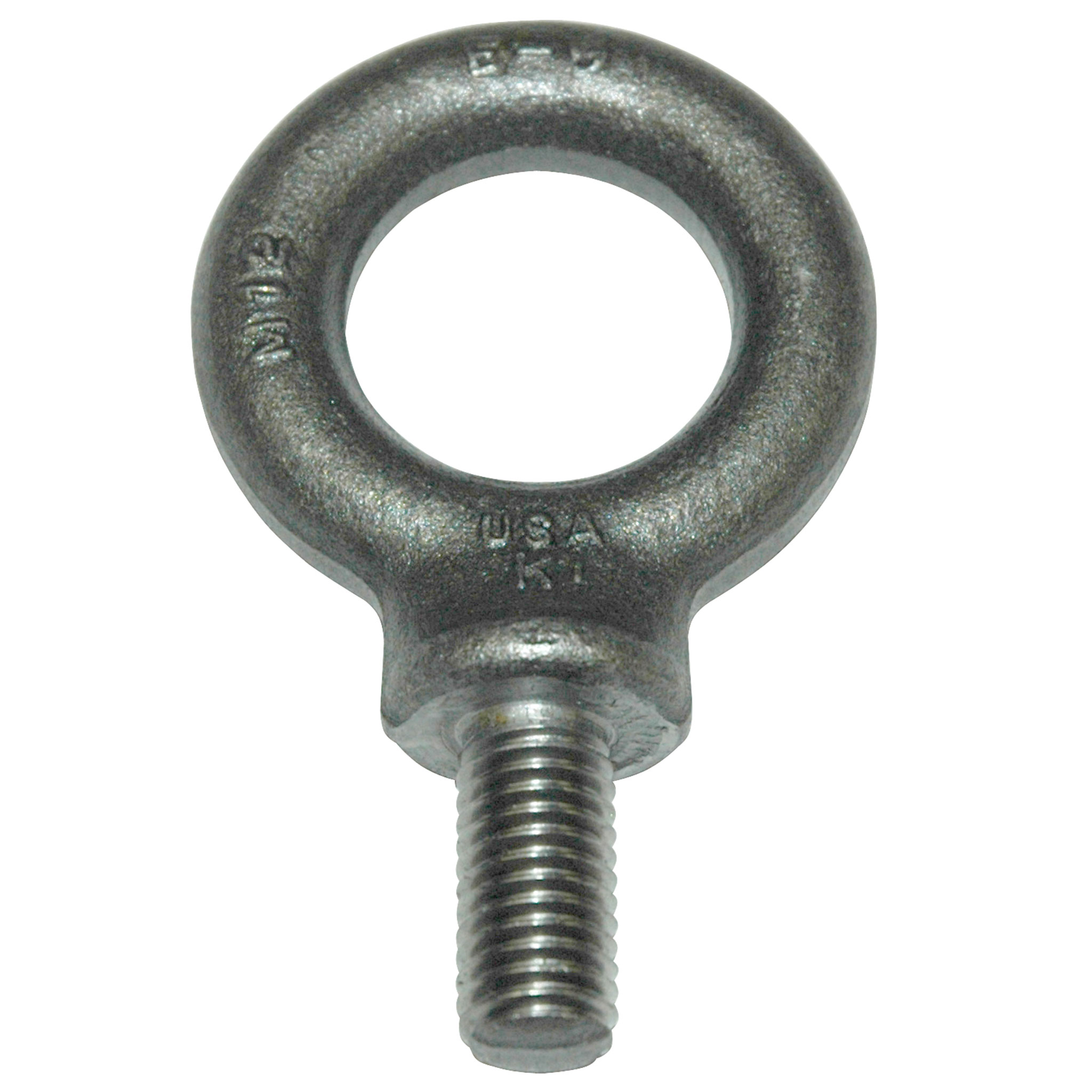

Eyebolt, 1,030 kg (2,270 lb.) Capacity, Metric, Shouldered, Forged Steel, M12x1.75 Thread Size.
- 24 mm (0.945") Shank Length
- 30 mm (1.181") Eye Inside Diameter
- 54.0 mm (2.126") Eye OD
- 34.0 mm (1.339") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 1,030 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M12 x 1.75
Item Documents
- Item Catalog Page 27
-
-
Eyebolt, 3,200 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 9/16″-12 Thread Size
Item # 142209$11.20 / EACH -
$20.50 / EACH -
Eyebolt, 1,800 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 7/16″-14 Thread Size
Item # 101415$7.50 / EACH -
$15.70 / EACH
-
Eyebolt, 2,400 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1/2″-13 Thread Size
Item # 101423$6.10 / EACH -
Eyebolt, 740 kg (1,631 lb.) Capacity, Metric, Shouldered, Forged Steel, M10x1.5 Thread Size
Item # 107521$11.20 / EACH -
$5.30 / EACH -
Eyebolt, 15,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/4″-7 Thread Size
Item # 107961$37.40 / EACH -
$9.60 / EACH -
Eyebolt, 4,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 5/8″-11 Thread Size
Item # 101420$9.60 / EACH -
$28.40 / EACH
