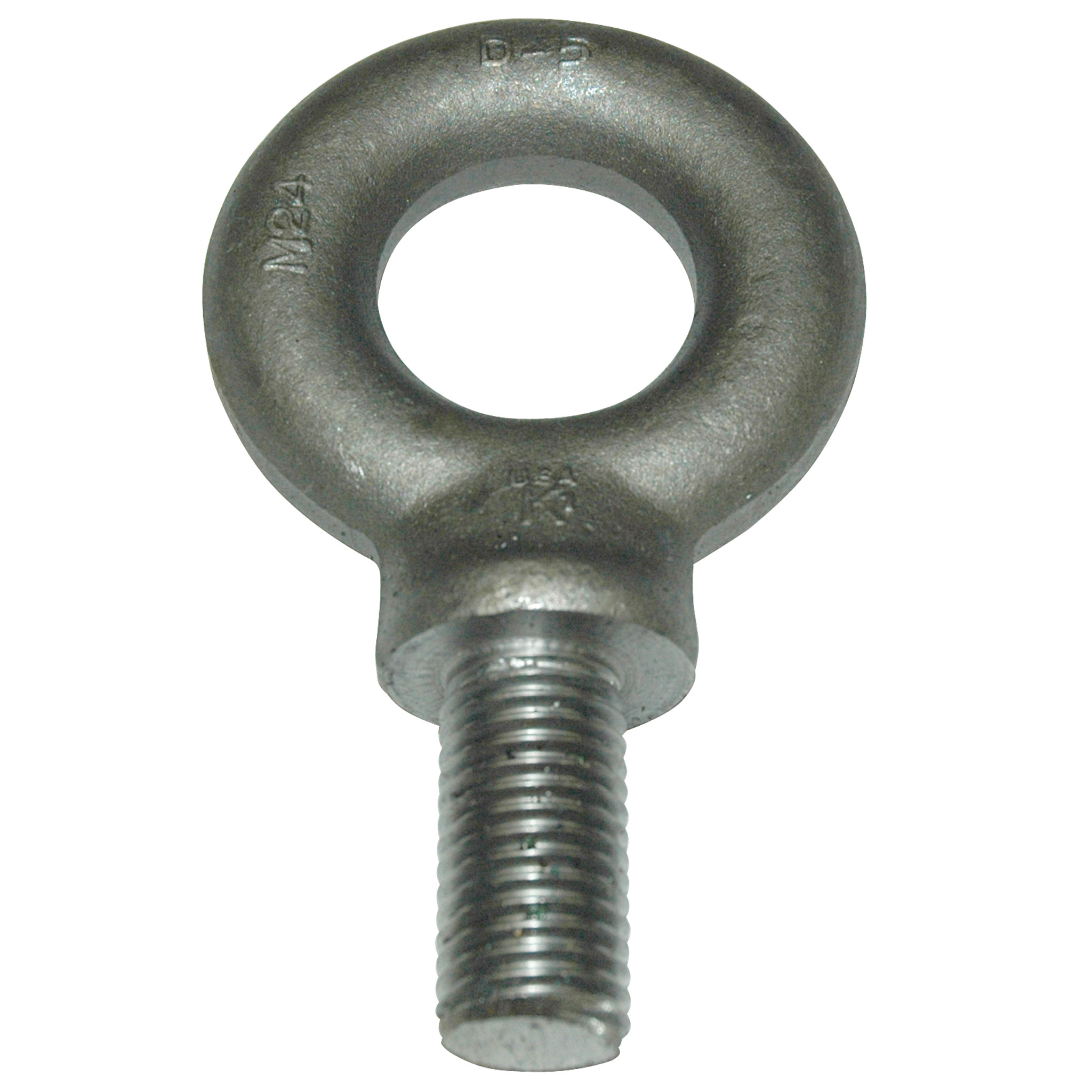

Eyebolt, 3,850 kg (8,489 lb.) Capacity, Metric, Shouldered, Forged Steel, M24 X 3.0 Thread Size
Item #
106718
Item is returnable
$35.80
/ EACH
Eyebolt, 3,850 kg (8,489 lb.) Capacity, Metric, Shouldered, Forged Steel, M24 x 3.0 Thread Size.
- 48 mm (1.959") Shank Length
- 45 mm (1.836") Eye Inside Diameter
- 90.4 mm (3.559") Eye OD
- 57.1 mm (2.25") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 3,850 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M24 x 3.0
Item Documents
- Item Catalog Page 27
-
-
Eyebolt, 740 kg (1,631 lb.) Capacity, Metric, Shouldered, Forged Steel, M10 X 1.5 Thread Size
Item # 107521$11.20 / EACH -
Eyebolt, 1,600 kg (3,527 lb.) Capacity, Metric, Shouldered, Forged Steel, M16 X 2.0 Thread Size
Item # 106724$17.20 / EACH -
Eyebolt, 15,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/4″-7 Thread Size
Item # 107961$29.05 / EACH -
Eyebolt, 21,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 138829$48.70 / EACH -
Eyebolt, 2,140 kg (4,718 lb.) Capacity, Metric, Shouldered, Forged Steel, M18 X 2.5 Thread Size
Item # 106723$19.00 / EACH -
$11.92 / EACH -
Eyebolt, 1,030 kg (2,270 lb.) Capacity, Metric, Shouldered, Forged Steel, M12 X 1.75 Thread Size
Item # 107520$11.40 / EACH -
Eyebolt, 15,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/4″-7 Thread Size
Item # 137974$35.00 / EACH -
Eyebolt, 4,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 5/8″-11 Thread Size
Item # 101420$7.47 / EACH -
$7.47 / EACH -
$12.18 / EACH
