Eyebolt, 2,140 kg (4,718 lb.) Capacity, Metric, Shouldered, Forged Steel, M18x2.5 Thread Size
Item #
106723
$19.00
/ EACH

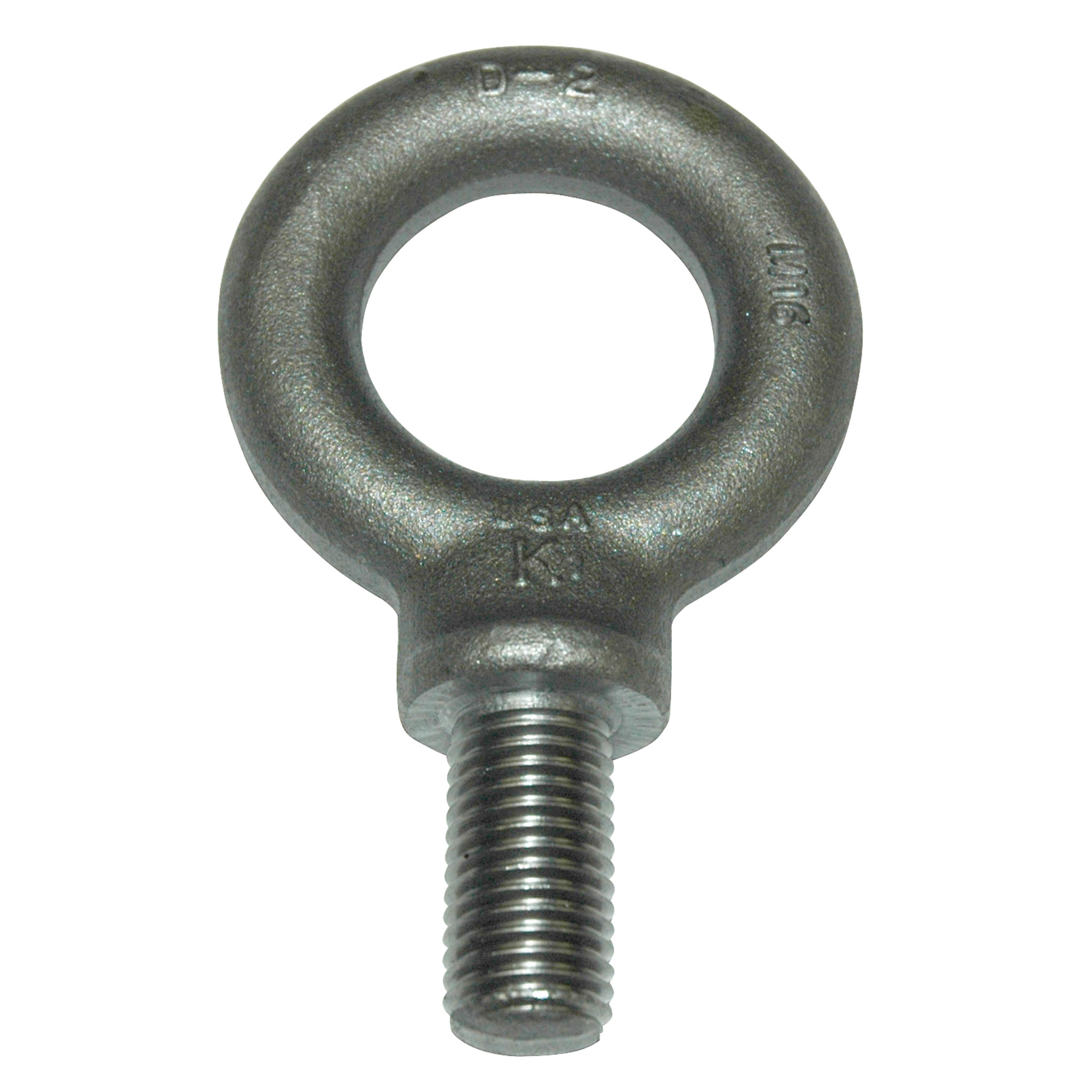

Eyebolt, 1,600 kg (3,527 lb.) Capacity, Metric, Shouldered, Forged Steel, M16x2.0 Thread Size
Item #
106724
Item is returnable
$17.20
/ EACH
Eyebolt, 1,600 kg (3,527 lb) Capacity, Metric, Shouldered, Forged Steel, M16x2.0 Thread Size.
- 32 mm (1.26") Shank Length
- 35 mm (1.378") Eye Inside Diameter
- 65.0 mm (2.559") Eye OD
- 40.9 mm (1.61") Center of Eye to Shoulder
- C1030 Steel, Heat Treat – Quench and Draw
- 65,000 psi Min. Tensile Strength
- 30,000 psi Yield
- Load Capacity: 1,600 kg
- Thread Type: Metric
- Style: Shouldered
- Thread Size: M16 x 2.0
Item Documents
- Item Catalog Page 27
-
-
Eyebolt, 1,300 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 3/8″-16 Thread Size
Item # 101417$5.00 / EACH -
$11.50 / EACH -
Eyebolt, 3,200 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 9/16″-12 Thread Size
Item # 142209$11.20 / EACH -
Eyebolt, 21,000 lb. Capacity, Standard, Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 138829$62.70 / EACH -
Eyebolt, 2,400 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1/2″-13 Thread Size
Item # 101423$6.10 / EACH -
Eyebolt, 21,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/2″-6 Thread Size
Item # 142210$96.50 / EACH -
$15.70 / EACH -
Eyebolt, 7,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 7/8″-9 Thread Size
Item # 101425Request Quote/Call for Price -
Eyebolt, 2,860 kg (6,306 lb.) Capacity, Metric, Shouldered, Forged Steel, M20x2.5 Thread Size
Item # 106720$27.40 / EACH -
Eyebolt, 12,000 lb. Capacity, Standard, Non-Shouldered, Forged Steel, 1-1/8″-7 Thread Size
Item # 101421$28.30 / EACH -
$75.00 / EACH
