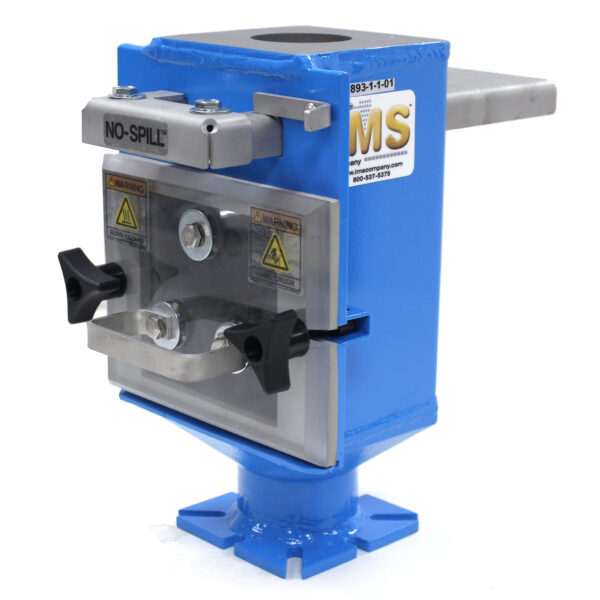

Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 1

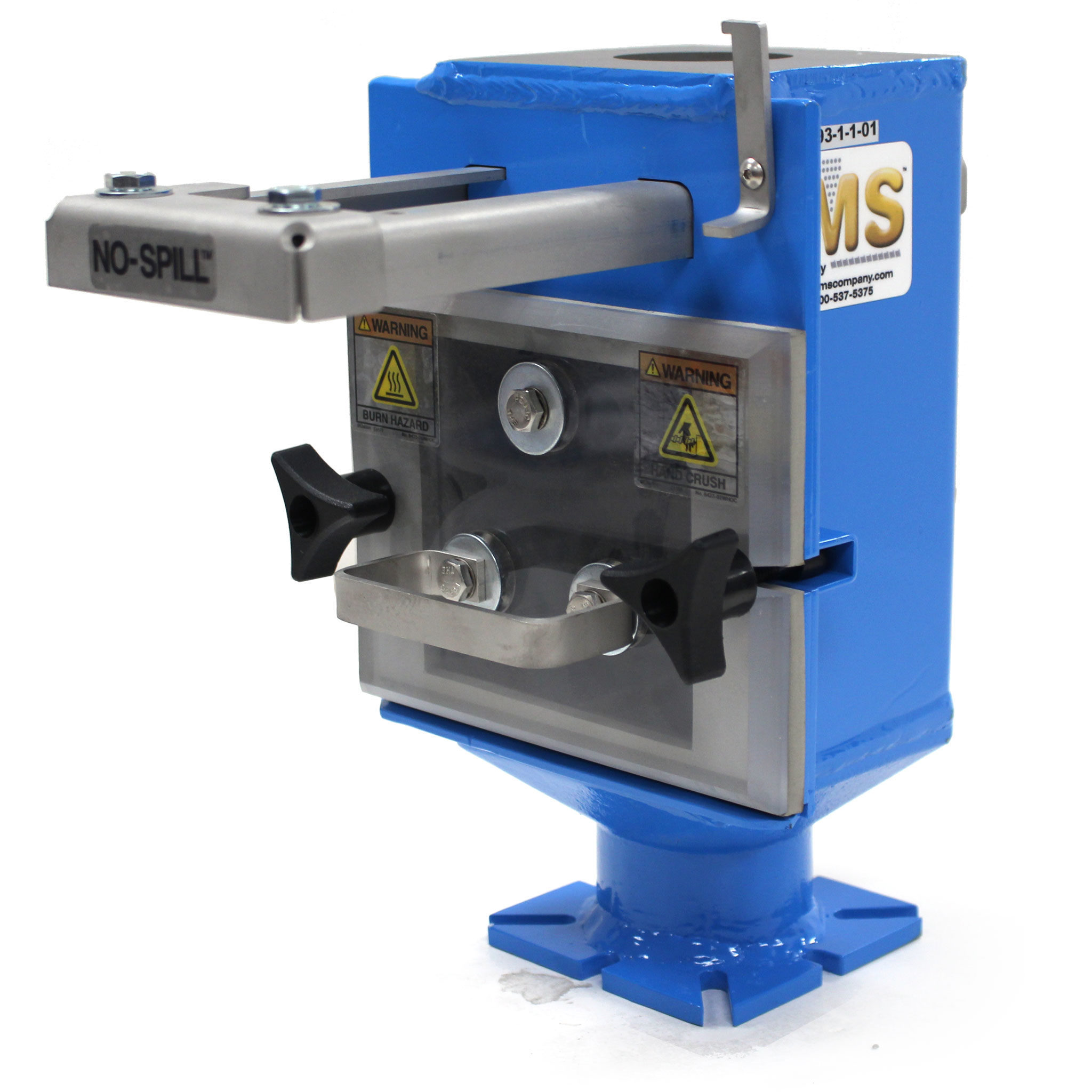

Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 2

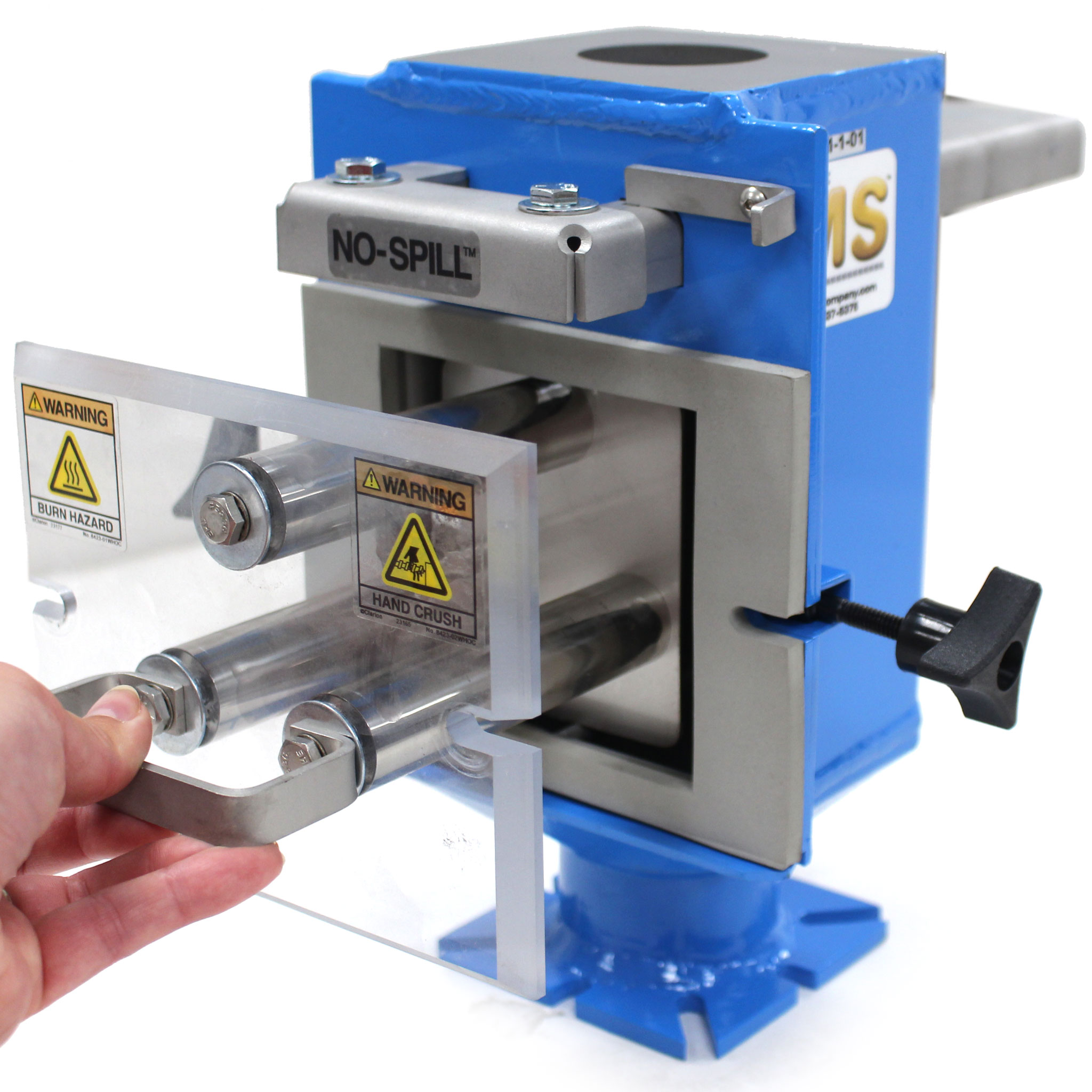

Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 3

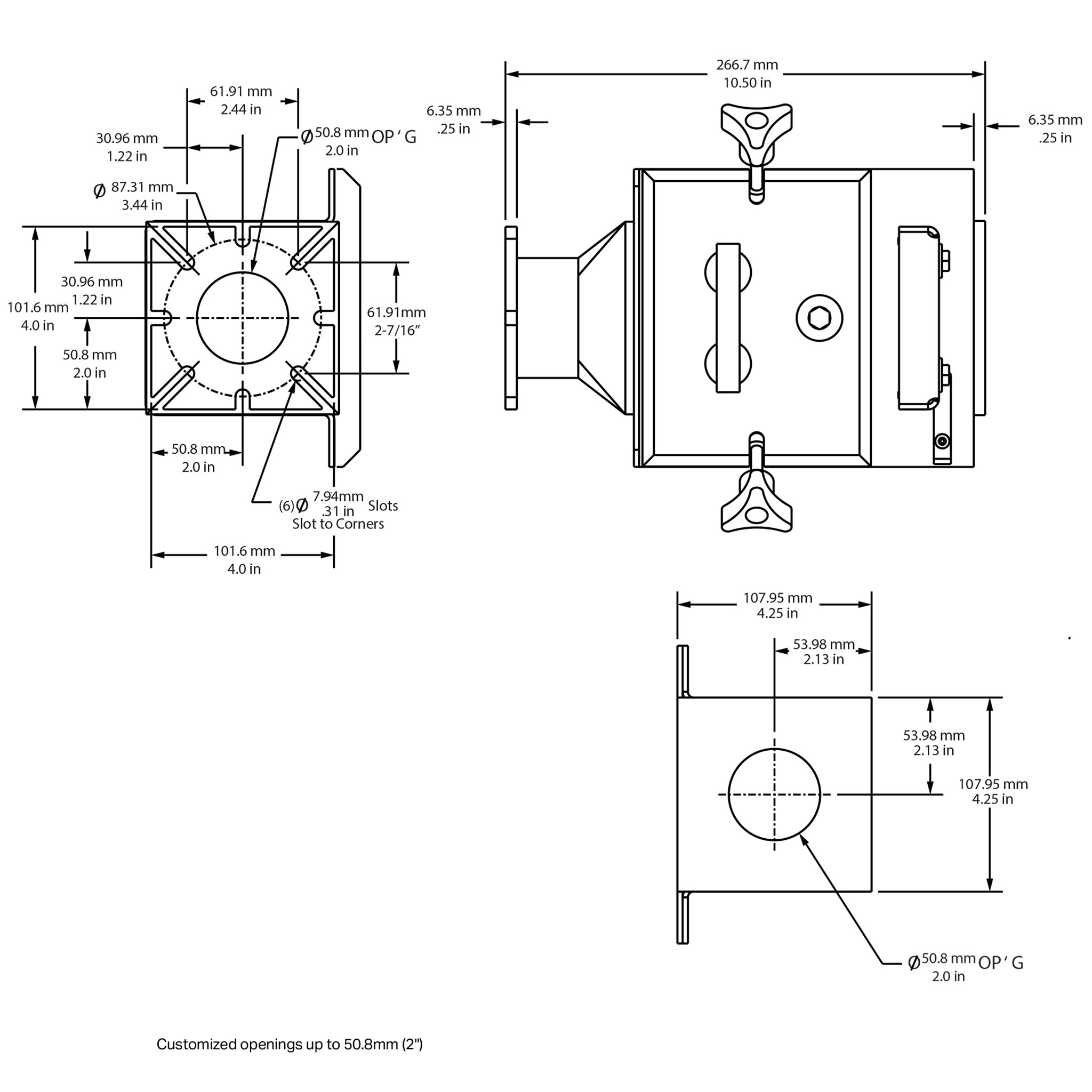

Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 4
Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 1Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 2Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 3Drawer Magnet, 4" x 4", with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange - Image 4

Drawer Magnet, 4″ x 4″, with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange

Item # 175700
Item is returnable
$682.00 / EACH

Drawer Magnet, 4″ x 4″ with Undrilled Blank Steel Top Flange and Universal Slotted Bottom Flange, Includes Slide Gate, 180°F Rare Earth Magnet, 4″ x 4″ Stainless Steel Housing with Carbon Steel 4-1/4″ x 4-1/4″ Top Flange and 4″ x 4″ Slotted Bottom Flange, Top Feed Opening 2″, Bottom Feed Opening 2″.
Efficiently captures and retains ferrous metal contaminants, ensuring tramp metals don’t enter and damage your processing equipment.

Item Features

  • Minimize Downtime: the slide gate enables you to stop material flow and clean the magnet without sacrificing productivity
  • 180°F Temperature-compensated Rare Earth Neodymium Magnets Made for Injection Molding Machines
  • 5,000 Gauss Magnetic Strength
  • Two rows of 25mm (1") tubes optimize the magnetic circuit, ensuring free material flow
  • 4" x 4" Heavy Duty 11 ga. Stainless Steel Housing, can support symmetrical compression loads up to 10,000 lb.
  • Carbon Steel Flanges – 1/4" thickness
  • EPDM Drawer Gasket resists heat aging
  • Clear Polycarbonate Drawer Front allows easy viewing of materials
  • High-torque Nylon Drawer Knobs
  • Customizable options available – Inquire
