Manifold, Water, Steel, HV-ST Series (2) 1-1/2″ NPT Inlet/Outlet, (10) 1/2″ NPT Ports, 25-1/4″ OAL
Item #
120342
Request Quote/Call for Price

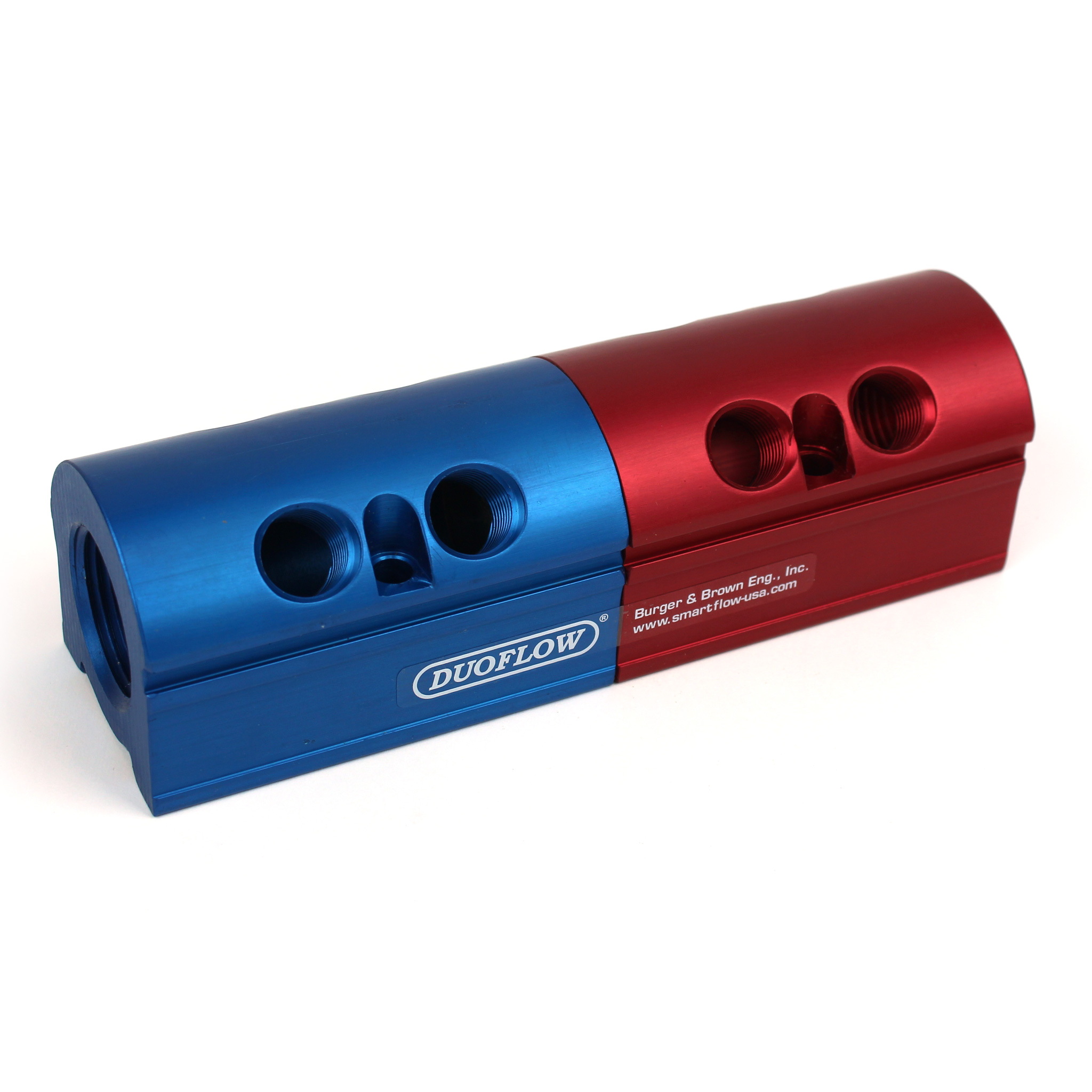

Manifold, Aluminum, Duoflow (2) 1-1/2″ Inlets and (8) 1/2″ Ports
Item #
149542
Item is returnable
$204.00
/ EACH
Manifold, Aluminum, Duoflow (2) 1-1/2″ Inlets and (8) 1/2″ Ports, 4 Ports Blue to Denote Supply End and 4 Ports Red for Return End, Divided Internally, Split Bulkhead Design.
SMARTFLOW 12SDA-8-4-13-AYZ
- Max Temp: 210 F
- Max Pressure: 150 psi
- Material: Anodized Aluminum
- Overall Length: 9" (229mm)
- Divider: Stainless Steel
- O-Ring: EPDM
- Mold-Mount to Speed Mold Changes
- Not recommended with ball valves due to narrow port spacing
- Style: Split (Bulkhead)
- Inlet Size NPT: 1-1/2"
- Number of Ports: 4 in / 4 out
- Port Size NPT: 1/2"
- Material: Anodized Aluminum, Red and Blue
Item Documents
- Item Catalog Page 359
-
-
Manifold, Water, Steel, HV-ST Series (2) 1-1/2″ NPT Inlet/Outlet, (12) 1/2″ NPT Ports, 30-1/4″ OAL
Item # 122303$241.95 / EACH -
Manifold Riser Kit, for Tandem Mount
Item # 101210$33.30 / EACH -
Manifold, Water/Air, Steel, IMS “Minifold” (2) 3/8″ NPT Inlet/Outlets, (8) 3/8″ NPT Ports, 13-3/8″ OAL
Item # 138530Request Quote/Call for Price -
$186.00 / EACH -
$113.00 / EACH -
Manifold, Water, Steel, HV-ST Series (2) 1″ NPT Inlet/Outlet, (4) 1/2″ NPT Ports 14-1/4″ OAL
Item # 120748$141.27 / EACH -
Manifold, Water, Stainless Steel, ST Series (2) 3/4″ Inlet/Outlet, (8) 1/2″ NPT Ports 25-1/4″ OAL
Item # 105546$297.03 / EACH -
Manifold, Water, Steel, BH Series (Bulkhead) (2) 3/4″ NPT Inlet/Outlet, 1/2″ NPT Ports, 3 Circuit
Item # 120752Request Quote/Call for Price -
$94.00 / EACH -
Manifold, Water, Steel, BH Series (Bulkhead) (2) 3/4″ NPT Inlet/Outlet, 1/2″ Ports, 4 Circuit
Item # 120749$629.00 / EACH -
Manifold, Water, Stainless Steel, ST Series (2) 1-1/4″ Inlet/Outlet, (8) 1/2″ NPT Ports 24″ Body Length
Item # 160224$315.61 / EACH
