Hoist Ring, Metric Size, Rated Load: 1900 kg. M16 X 2.0 Thread Size, 25mm Thread Length
Item #
115945
$80.38
/ EACH

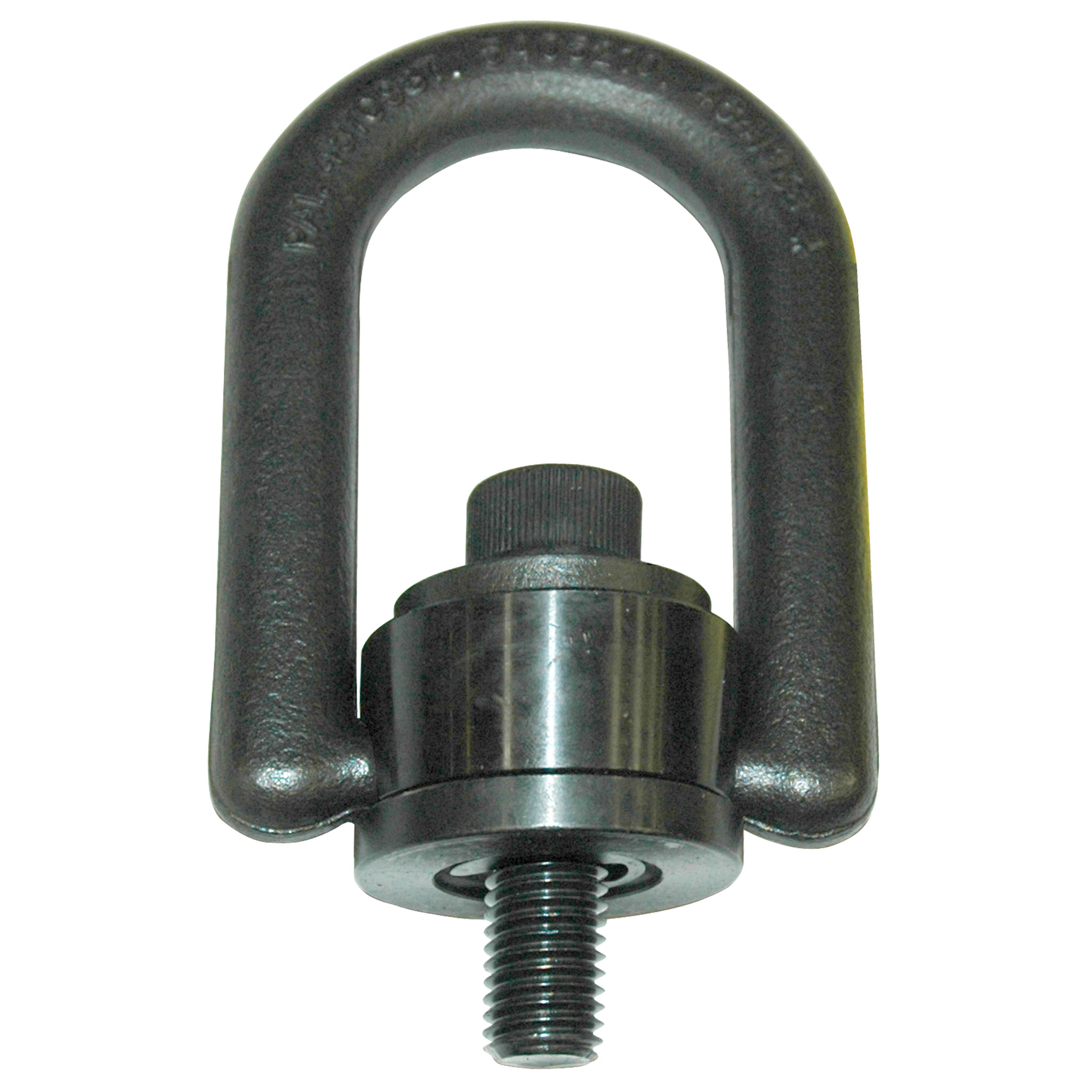

Hoist Ring, Standard Size, Rated Load: 4000 lb. 5/8″-11 Thread Size, 1″ Thread Length
Item #
115927
Item is returnable
$80.38
/ EACH
Hoist Ring, Standard Size, Rated Load: 4000 lb. 5/8″-11 Thread Size, 1″ Thread Length. ADB # 33614
- Made in the USA
- 180 Pivot and 360 Degree Swivel
- Retains Full Load Capacity at Any Angle
- Minimum Safety Factor 5: 1
- Meets OSHA Standards
- Meets MIL-STD1365 (11) or MIL-STD209C
- Used in Nuclear Energy Equipment
- Independent Destructive Testing
- 4140 High Strength Alloy Steel
- Minimum Tensile Strength of 180,000 psi
- Certified Heat Treatment
- 100% Magnetic Particle Inspected
- Black Oxide Finish
- Thread Type: Standard
- Rated Load: 4,000 lb
- Thread Size: 5/8"-11
- Thread Length: 1"
- Safety Engineered: No
Item Documents
- Item Catalog Page 23
-
-
Hoist Ring, Metric Size, Rated Load: 400 kg. M8 X 1.25 Thread Size, 21mm Thread Length. ADB # 34214
Item # 115948$66.33 / EACH -
Hoist Ring, Metric Size, Rated Load: 4500 kg. M30 X 3-1/2 Thread Size, 48mm Thread Length
Item # 115956$188.62 / EACH -
Hoist Ring, Standard Size, Rated Load: 1000 lb. 3/8″-16 Thread Size, .56″ Thread Length
Item # 115924$66.33 / EACH -
Hoist Ring, Standard Size, Rated Load: 10000 lb. 1″-8 Thread Size, 1.20″ Thread Length
Item # 115963$188.62 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115957. Bolt/Screw Size M20X2.5
Item # 122810$34.18 / EACH -
Hoist Ring, Standard Size, Rated Load: 4000 lb. 5/8″-11 Thread Size, 1.25″ Thread Length
Item # 115953$80.38 / EACH -
Hoist Ring Replacement Bolt/Screw Kit for IMS Hoist Ring #115963. Bolt/Screw Size 1″-8
Item # 121745$39.89 / EACH -
Hoist Ring, Metric Size, Rated Load: 2200 kg. M20 X 2-1/2 Thread Size, 38mm Thread Length
Item # 115957$83.53 / EACH -
Hoist Ring, Metric Size, Rated Load: 1050 kg. M12 X 1-3/4 Thread Size, 32mm Thread Length
Item # 115950$80.38 / EACH -
Hoist Ring, Metric Size, Rated Load: 2200 kg. M20 X 2-1/2 Thread Size, 25mm Thread Length
Item # 115962$83.53 / EACH -
Hoist Ring, Standard Size, Rated Load: 5000 lb. 3/4″-10 Thread Size, 1.5″ Thread Length
Item # 115943$83.53 / EACH
